Spatiotemporal Flux Probing
for Single-Photon Videography

We address the problem of recovering high-speed videos from dynamic scenes under extreme photon sparsity. Existing methods rely on aggregating photon detections in local spatiotemporal windows to improve signal-to-noise ratio; however, this local grouping discards global structure and fails in low-light regimes where photon detections are sparse in space and time. In this work, we show that the information needed to recover both motion and illumination is encoded in correlations over the full space-time pattern of photon arrivals. Building on this insight, we develop a spatiotemporal flux probing theory and an algorithm that estimates the Fourier coefficients of the underlying intensity directly from the photon stream. We demonstrate that our approach (1) recovers fast motion and temporal illumination dynamics with substantially fewer photons than prior methods, (2) enables velocity-selective videography that automatically refocuses video onto specific detected motions, and (3) generalizes across sensing modalities including single-photon, event, and spike cameras.

A single-photon camera never observes the spatiotemporal flux $\phi(x, y, t)$ directly; it records only a sparse stream of photon arrivals scattered through the space-time volume. This global pattern of arrivals is highly informative: even when photons are sparse, correlations spanning the full volume still carry the structure of the underlying flux, and can be used to estimate it.

To extract that structure, we pick a probing function $p$, a pattern whose resemblance with the unknown flux is quantified by the inner product $\langle p, \phi\rangle$. We can obtain a noisy estimate of this inner product by evaluating $p$ at the detected photon time and positions $\mathbf{x}_1, \dots, \mathbf{x}_N$ and summing:

$$\underbrace{p(\mathbf{x}_1) + \dots + p(\mathbf{x}_N)}_{\substack{\text{probing measurement }\mathcal{E}_p \\ \text{from } N \text{ detected photons}}} = \underbrace{\langle p, \phi\rangle}_{\text{inner product}} + \underbrace{M_P}_{\text{noise}}$$

This gives us an approximate noise model: $\mathcal{E}_p \sim \mathcal{N}(\langle p, \phi\rangle, \langle p^2, \phi\rangle)$. Every photon in the volume contributes to this estimate.

Our framework admits any bounded probing function; we use the 3D Fourier basis because both spatial motion and illumination flicker form distinct patterns in the spatiotemporal frequency domain.

This gives a three-step reconstruction pipeline:

1. Scan. Probe the photon stream at every frequency the sensor can resolve.
2. Detect. Keep the frequencies whose probing measurements rise above the noise floor.
3. Reconstruct. Invert the detected frequencies back into a video, which can then be resampled at any frame rate up to sensor precision after the fact.

We show a simulated stream of photon arrivals containing one frequency (middle plot), where we scan frequencies $\mathbf{f} = (f_x, f_y, f_t)$ (left plot) of the flux $\phi$ and estimate their probing measurements $\mathcal{E}_\mathbf{f}$ (right plot). Using a noise floor (red circle, right plot), we can exclude noisy frequencies.

We scan every frequency up to the sensor's spatiotemporal precision. Below, frequency's probing energy $|\mathcal{E}_\mathbf{f}|$ is compared against the noise floor. The frequencies that survive accumulate into the running flux reconstruction $\hat{\phi}$ (right).

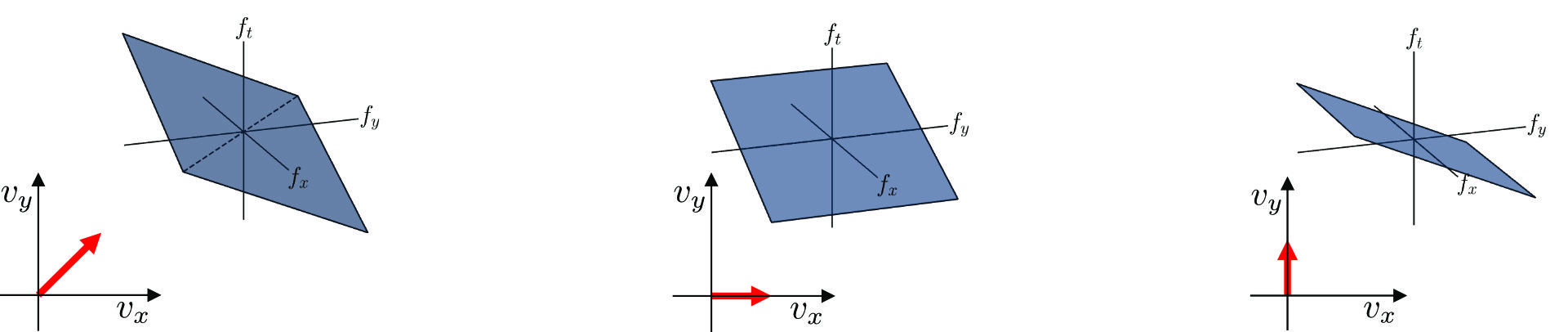

Within frequency space, an object moving at constant velocity $(v_x, v_y)$ concentrates its energy on a tilted plane $v_x f_x + v_y f_y + f_t = 0$ whose slope is its velocity. Estimating motion therefore reduces to finding those planes — no optical flow, no correspondence — and every velocity in the scene is found automatically, straight from the photon stream.

We validate the theory on real captures across multiple sensing modalities. For single-photon synchronous capture we use a 512×512 SPAD512 camera running at 100 kHz; for asynchronous capture, a single-pixel SPAD with 68 ps timing resolution. Baselines for single-photon videography are ultra-wideband imaging (UWB), quanta burst photography (QBP), and bit2bit.

Flux probing can apply to any asynchronous sensor whose events encode a continuous intensity signal, as long as its image formation model and noise behavior are known. Spike cameras fire when accumulated light crosses a threshold, so their events probe the flux directly up to a scale factor. Event cameras fire on changes in log-intensity, so probing recovers the flux's rate of change instead, which we integrate back and combine with co-recorded intensity frames via Kalman filter (KF) to restore the slow content event cameras cannot see. In both cases the same scan-detect-reconstruct pipeline applies, with a filtering step to suppress each sensor's characteristic artifacts.
